Inflatable Dock Shelter

Home > Inflatable Dock Shelter
  • sisme
  • sisme3
  • sisme2
  • dock-products-royal-mail-uk.d3762929
  • shelter 800x400

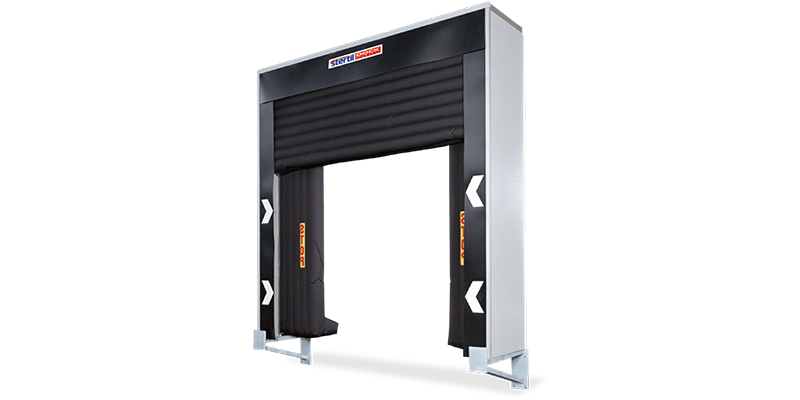

The inflatable shelters are unique in their design, features and are ideal for cold storage and freezer facilities. Maximum flexibility for diverse vehicle sizes can be achieved with inflatable top and side cushions for virtually airtight sealing with every docking vehicle.The inflatable dock shelters can be fully personalized and custom made upon request to fit every docking situation. With high density bumpers for the side panels, extra protection prevents damage to the shelter, leveller and wall (WIS only).

  • Inflation time ~15 seconds, deflation time ~20 seconds.
  • No obstruction of loading opening
  • Standard double guidance marking chevrons for correct positioning of vehicle



DOWNLOAD BROCHURE

  • sisme
  • sisme3
  • sisme2
  • shelter 800x400
  • dock-products-royal-mail-uk.d3762929
  • Aluminium frame, with 40 mm insulated sandwich panels in Light Grey finish (RAL 7038)
  • Top and side protection curtains made from heavy-duty PVC
  • Standard protection curtain colour: black with white guidance markings
  • Finished with aluminium profiles
  • Powerflex Option

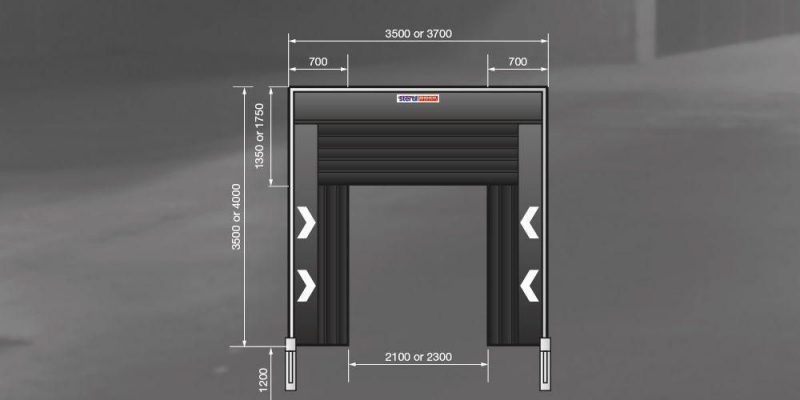

  • Dimensions – Inflatable Shelters
  • Additional armour pleats on the header curtain
  • High wear resistance and long life span
Standart Dimensions WI-Series WIS-Series
A.Outside Width 3000 mm or 3700 mm 3000 mm or 3700 mm
B.Outsides Height Platform Model 3600 mm or 4000 mm 3600 mm or 4000 mm
Ground Level Model 4700 mm 4700 mm
C. Projection 815 mm 915 mm and 1015 mm
D. Height of inflated Top cushion 1350 mm or 1750 mm 1350 mm, 1750 mm,
1900 mm and 2300 mm
E. Width of inflated side cushion 700 mm 675 mm (side curtain)
