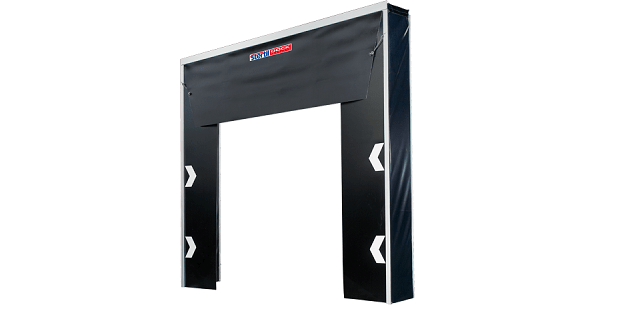

  • perdekoruk1

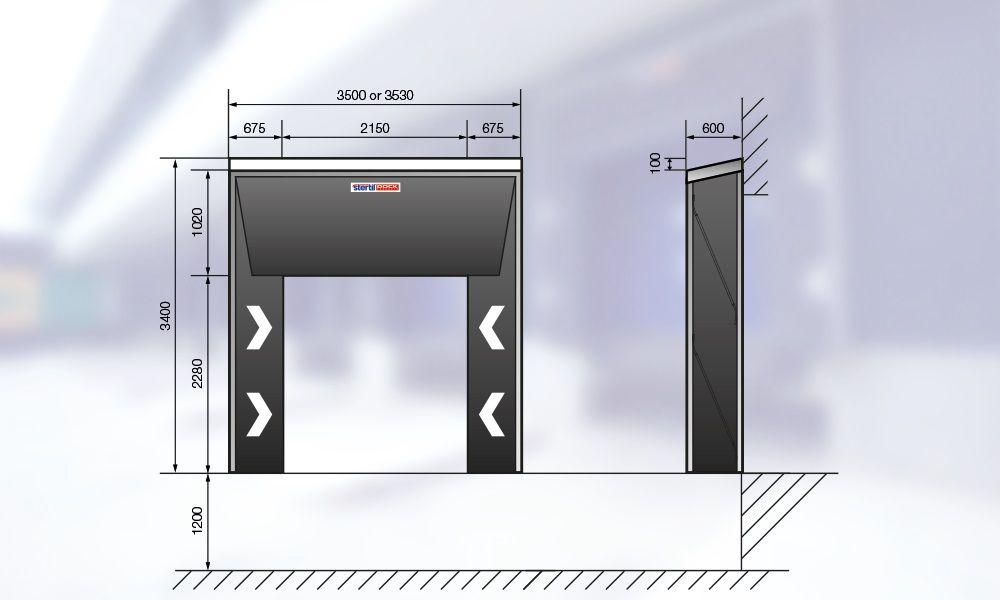

  • dimensions-w-series-black

W-Series Curtain Shelters provide optimal sealing for vehicles with various widths and heights which makes it the universal and flexible solution. They can be 100% tailored to fit and meet all the requirements to seal any type of vehicle which makes the W-Series shelter the most versatile, reliable and effective shelters. The curtain shelter is available in four different models including the WL as the standard premium model with maximum versatility, WF model without side panels for use on recessed platforms, WSP model with a fixed frame and the cost effective WE version.

  • Effective and Versatile
  • Very Durable
  • Fully Customisable
  • Reinforced PVC Curtain or POWERFLEX®
  • WL Curtain Shelter
  • perdekoruk1

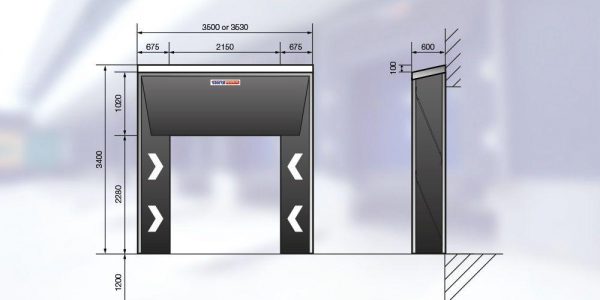

  • dimensions-w-series-black
WE WL WF WSP
Transparent curtain material on the projection section for more daylight and increased working safety •
PVC curtain material in other colours available on request • • • •
Double guidance chevron markings help the driver position the vehicle correctly into the shelter • • •
Special projections of 750 or 900 mm, depending on the required depth (up to 1,200 mm with the WSP) • •
Height and/or width adjusted to accommodate larger or smaller vehicles • •
Special dimensions for side and/or top curtains. May be combined with the previous option • • •
Custom bottom pads for sealing against draughts. Available in various sizes • • • •
Dock number markings on header curtains • • • •
Rubber wind straps to prevent curtain flapping • • • •
POWERFLEX® curtain material for extreme and changeable weather conditions, in particular very low and very high temperatures • • •
Optional extra bottom curtain for ground-level models to seal against draughts • • • •
HD bumpers for WSP model to protect fixed sandwich side panels •
